Photoelectric Detector

الميزات الوظيفية
مؤشرات المعلمات
تحميل
APPLICATION SCENARIOS

```
stable tracking
```
Multispectral imaging, visible light, thermal imaging, laser fill light encoded and transmitted under the same SOC.
High tracking accuracy

Intelligent applications：Edge computing, deep learning algorithms, supporting object detection, object recognition, object tracking.
Open architecture

capable of integrating radar guidance, AIS, spectrum detection, TDOA, and other systems for guidance.
High protection level

Three-proof structural design, wind resistance level 12, suitable for application in harsh environments.

المعلمة المؤشرات

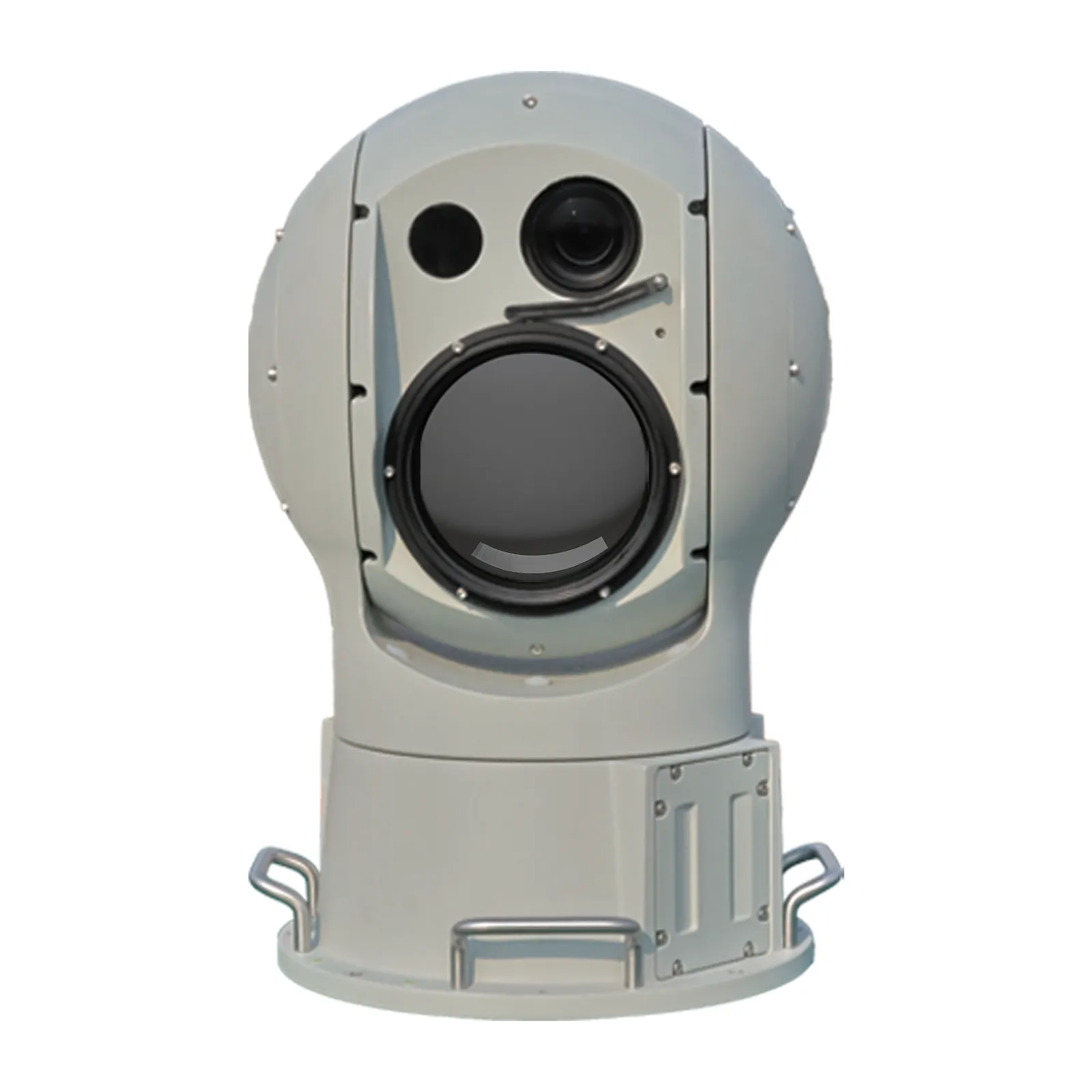

منتج	Name	Multispectral Target Recognition and Tracking Servo Turntable
	Detection model	UMAS-P02
	Specification model	UMAS-P02-1
Visible Light image	Image resolution	1920*1080 @25fps
	Lens focal length	F7.2-360mm (50X optical continuous zoom)
	Image mode	Color, black and white, optical defogging
	Image adjustment	White balance, wide dynamic range, gain control
	Video parameters	Brightness, contrast, sharpness, saturation.
	Focus mode	Automatic / Manual
	Daytime performance indicators	1.Reference target: Civil aircraft Detection range: ≥15KM; Tracking range: ≥10KM; Identification range: ≥7KM 2.Reference Target: Drone 0.35m*0.35m Detection range: ≥3.5KM; Tracking range: ≥3KM; Recognition range: ≥2.5KM (Working conditions: Ambient temperature: 20℃, Visibility: ≥10Km, Relative humidity: <40%)
Infrared Thermal imaging	Detector type	Uncooled Vanadium Oxide Detector
	Image resolution	640*512; Image encoding resolution: 12801024
	Lens focal length	F30--150mm
	Image mode	Hot black, hot white, pseudo-color.
	Night performance indicators	1.Reference target: Civil aircraft Detection range: ≥10KM; Tracking range: ≥6KM; Identification range: ≥4KM 2.Reference Target: Drone 0.35m*0.35m Detection range: ≥1.8KM; Tracking range: ≥1.5KM; Recognition range: ≥1.2KM (Working conditions: Ambient temperature: 20℃, Visibility: ≥10Km, Relative humidity: <40%)
Servo turntable	Rotary table type	Servo direct drive, PID feedback
	Horizontal range, speed	0°~360°horizontal key control speed: 0.1°~80°/s
	Pitch range, speed	-45°~90°vertical key control speed: 0.1°~80°/s
	Angle deflection correction	Electronic compensation
	Pre-set stop accuracy	±0.01°
Video Encoding and Intelligence	Video Compression format	H.256 / H.264 / MJPEG (Limited to image capture)
	Intelligent guidance	Capable of receiving radar guidance, spectral guidance, TDOA guidance, and multi-point optical positioning guidance
	Intelligent Search	Full-screen motion target search, thermal target tracking search
	Intelligent Tracking	Specific target recognition and tracking, moving target tracking, guided tracking, manual tracking
	Target recognition	Supports classification and identification of over 80 types of targets including drones, humans, vehicles, boats, etc.
	Network protocol	IPv4, TCP/IP, UDP, etc.
General Standards	Interface	Standard aviation plug interface (including: DC48V power supply, 10M/100M adaptive network interface)
	Protection level	IP66, optional three-proof protection
	Operating temperature/ humidity	-40℃ to +60℃, humidity <90%
	Power Supply & Power Consumption	AC220V to DC48V, with power supply; Power consumption ≤120W
	Size and dimensions	Ф360*547mm(Standard configuration is for reference only, excluding customized equipment)
	Weight (net weight)	≤40Kg (Standard configuration is for reference only, excluding customized equipment)

تحميل موارد

Application Scenarios

Military reconnaissance and defense
border monitoring
urban security and public safety
airport airspace monitoring
