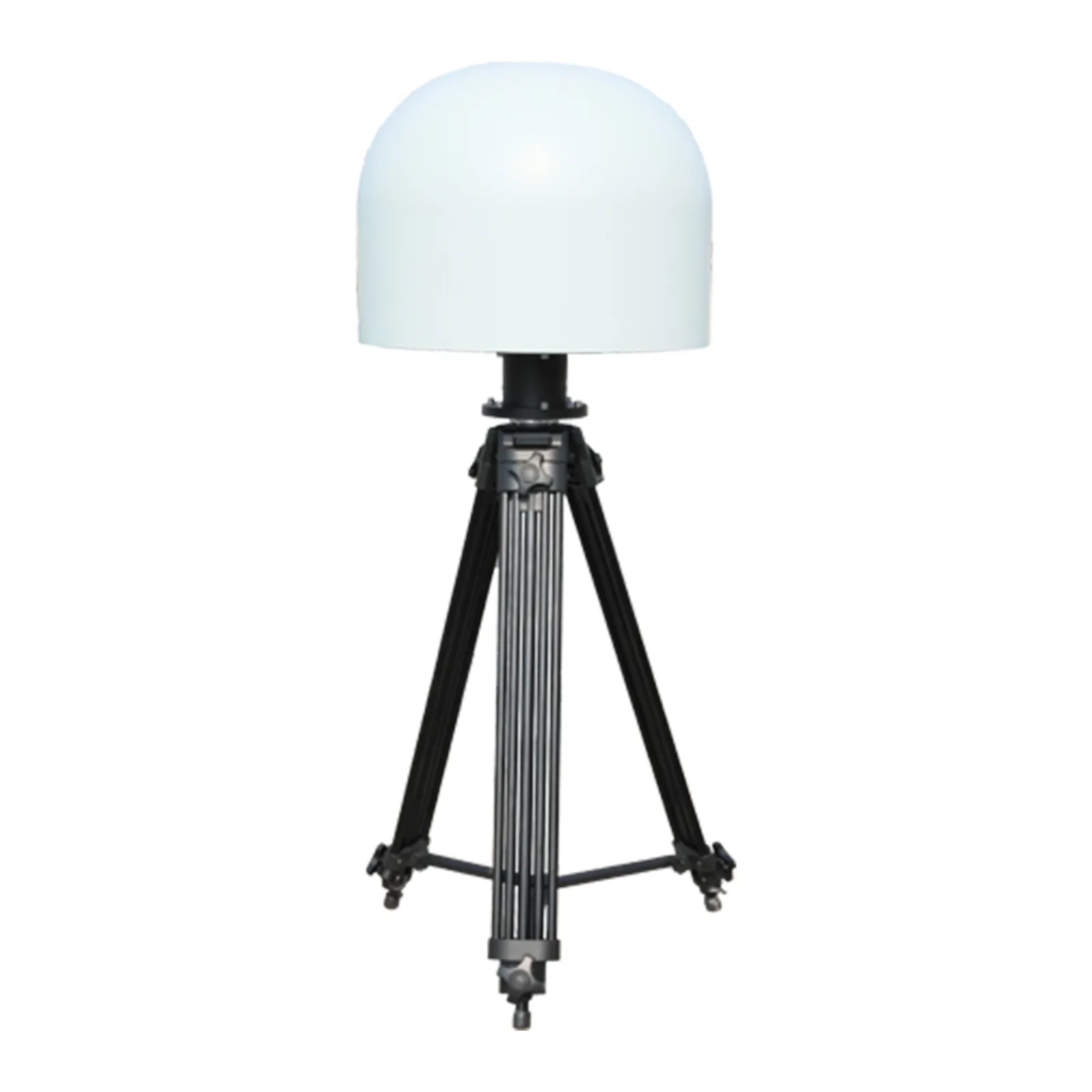

As drone incursions and airspace violations rise exponentially across sensitive areas—from critical infrastructure to urban centers—modern security operations rely on cutting-edge technologies for rapid, reliable, and passive UAV detection. The AOA Passive Spectrum Drone Detector for 10km stands at the forefront of this industry, delivering genuine 360° radio-frequency (RF) spectrum surveillance and high-precision angle-of-arrival (AOA) geolocation capabilities with an unrivaled detection range of up to 10 kilometers.
Table of Contents
- Industry Trends & Market Outlook
- Technology Overview & Structural Advantages
- Manufacturing Process & Material Excellence
- Technical Specifications & Visualization
- Application Scenarios & Typical Use Cases
- Vendor Comparison & Product Benchmarks
- Custom Solutions & Engineering Support
- Case Studies & Client Feedback
- FAQ: Technical Terms Explained
- Delivery Cycle, Warranty & Customer Support
- References
1. Industry Trends & Market Outlook for Passive RF Drone Detection
Global concern over UAV security: According to a Grand View Research report, the worldwide anti-drone market is projected to reach USD 10.6 billion by 2030, driven by rising threats of UAV-based intrusion on oil refineries, power plants, airports, and public venues.
Shift to passive detection: Passive spectrum-based technology, exemplified by the AOA Passive Spectrum Drone Detector for 10km, is rapidly replacing legacy radar solutions due to its immunity to stealth, RF silent drones, and complex noise environments.
2. Technology Overview & Structural Advantages
AOA Principle (Angle of Arrival Spectrum Analysis)
The detector uses a multi-channel software-defined radio (SDR) array to analyze the frequency characteristics of drone command, control, and telemetry signals. By utilizing advanced AOA algorithms and machine learning signal recognition, it offers:
- 360° Real-time monitoring – simultaneously processes multi-band signals for full-area coverage.
- 10 km line-of-sight detection of commercial, DIY, and RF-silent UAVs (using C2, Wi-Fi, ISM bands, etc.).
- Low false alarm rates via highly selective signature libraries and ECCM (Electronic Counter-Countermeasures).
- Completely passive—no emissions, undetectable by drone pilots, suitable for military-grade operations.
Core Hardware Structure
- High-gain antenna array: Directional, weather-proof, composite-encased (UV and corrosion resistant).
- Shielded aluminum chassis: CNC-precision milled for EMI immunity, dust proof (IP66).
- Industry-leading SDR modules: Supports wide bandwidth (20-6000 MHz), low phase noise oscillators, FPGA-accelerated DSP.
- Modular expansion: Compatible with C2, GNSS spoofing detection, and camera fusion (via standard API).
Industry Certifications & Quality Standards
- ISO 9001 quality management.
- IP66 environmental ingress protection.
- ANSI C63, CE, and tested for FCC part 15 compliance.
3. Manufacturing Process & Material Excellence
Craftsmanship Workflow Diagram
Material Selection
6061-T6 Aluminum, Carbon Fiber, UV-stabilized PC/ABS polymers
Raw materials sourced from ISO-approved suppliers
6061-T6 Aluminum, Carbon Fiber, UV-stabilized PC/ABS polymers
Raw materials sourced from ISO-approved suppliers
CNC Precision Machining
CNC-milled chassis, ±0.01mm tolerance
Surface anodized for corrosion resistance
CNC-milled chassis, ±0.01mm tolerance
Surface anodized for corrosion resistance
PCB Assembly
Automated SMT placement (IPC-A-610E)
100% AOI optical inspection
Automated SMT placement (IPC-A-610E)
100% AOI optical inspection
Antenna Array Integration
PIM and VSWR
PIM and VSWR
System Calibration
RF chamber-verified, multi-band sweep
RF chamber-verified, multi-band sweep
Functional & Environmental Testing
Full ISO/IEC 17025 test suite: -35°C~+75°C, humidity 98%
Full ISO/IEC 17025 test suite: -35°C~+75°C, humidity 98%
Packaging & Delivery
ESD-safe, impact-resistant packing
ESD-safe, impact-resistant packing
Manufacturing Advantages
- Material superiority: Aerospace-grade aluminum alloy (6061-T6)—lightweight, robust, and resistant to harsh environments.
- Anodized finish: Ensures lifetime corrosion resistance even in petrochemical, mining, and coastal deployments.
- Automated QC: 100% AOI and in-circuit electrical testing to international (ISO/IPC) standards.
- Full lifecycle stress testing: Designed for a lifespan >10 years continuous outdoor operation.
Key Applications by Industry
- Petrochemical plants (area defense, anti-sabotage)
- Metallurgy & steel mills (asset surveillance)
- Waterworks / wastewater management (facility perimeter protection)
- Airports & logistics hubs (no-fly zone enforcement)
- Border patrol, defense sectors, sports venues
4. Technical Specifications & Data Visualization
Product Specification Table
| Parameter | Spec/Value | Note |
|---|---|---|
| Detection Range | Up to 10,000 m (10 km) | LOS, tested with DJI, Autel, Yuneec UAVs |
| C2/Telemetry Bands Supported | 433MHz / 868MHz / 915MHz / 2.4GHz / 5.8GHz / Custom bands | Covers commercial, DIY, modified UAVs |
| Angle Resolution | ≤ 3° | AOA accuracy (RMS) |
| False Alarm Rate | <0.01 per hour | Field-verified, industry-best |
| Material | 6061-T6 Aluminum + Carbon Fiber | Military grade, IP66 |
| Operating Temp | -35°C ~ +75°C | 24/7 outdoor |
| Ingress Protection | IP66 | Dust, water jet, industrial |
| Power Consumption | <35W | High efficiency |
| Networking | TCP/IP, 4G/5G, PoE | Remote multi-site monitoring |
| Certifications | ISO9001, CE, FCC, IP66 | Full traceability |
| Lifetime | >10 years | Continuous operation |
5. Application Scenarios & Typical Use Cases
AOA Passive Spectrum Drone Detector for 10km is deployed by hundreds of critical operators worldwide, including:
- Oil & Petrochemical/Refinery Sites: Passive detection minimizes RF footprint—critical for explosive environments (ATEX-compliant zones).
- Airports & National Borders: Real-time UAV geolocation for no-fly zone protection; fully automated with command center integration.
- Urban Law Enforcement: Deployed in city-wide Safe City projects (e.g. Singapore, Amsterdam) for anti-drone on government buildings.
- Water/Wastewater Utilities: Early UAV detection prevents sabotage or espionage targeting water supply infrastructure.
- Major Event Venues: Stadiums, rallies, and concerts protected discretely by invisible detection layers.
- Energy, Power, and Mining Sectors: Resistant to RF jamming and harsh weather, ensures 24/7 asset coverage.
Real-World Case: Large-Scale Refinery Security
In 2023, a major Middle Eastern refinery (capacity: 800,000 bbl/day) reported attempted UAV recon incursions weekly. After strategic perimeter installation of AOA Passive Spectrum Drone Detector for 10km units, security teams achieved:
- 100% real-time detection rate (spanning >7km coverage per device).
- Zero operational downtime due to rain, sandstorms, or phase noise interference.
- >92% reduction in false positives vs. legacy acoustic and video-based sensors.
6. Vendor Comparison & Product Benchmarks
| Feature | AOA Passive Spectrum 10km | Brand X Radar-Based | Brand Y Acoustic Sensor |
|---|---|---|---|
| Detection Range | 10km | 7km | 2km |
| Passive RF | Yes | No | No |
| False Alarm Rate | <0.01/hr | ~0.21/hr | >2/hr |
| Band Coverage | 433/868/915MHz, 2.4/5.8GHz, custom | 2.4/5.8GHz mainly | N/A |
| Material / Protection | 6061-T6 Alu, Carbon Fiber, IP66 | Steel, IP54 | Plastic, IP44 |
| Lifecycle | >10 years | ~5 years | <4 years |
| Certifications | ISO, CE, FCC, IP66 | CE, IP54 | None |
| Anti-Jamming | Excellent (ECCM) | Moderate | Weak |
| Multi-Site Networking | Native | Optional | Not supported |
7. Custom Solutions & Engineering Support
- Available in fixed/portable, covert pole-mount, or vehicle kit form.
- Custom software integration via RESTful API/SDK—direct alarm relay, camera fusion/RTSP output.
- Site-specific antenna array shaping for urban canyons, industrial zones, or spacious perimeter defense.
- Full on-site engineering and installation services available worldwide.
8. Client Feedback & Global Deployments
AOA Passive Spectrum Drone Detector for 10km is operational in 23+ countries, protecting assets valued at over USD $300 billion.
Client Testimonial:
"Since deploying the AOA Passive Spectrum Drone Detector for 10km, our refinery's airspace security posture increased tenfold. False reports are virtually eliminated, and system operability in sandstorms and rain is unmatched. Excellent technical support and custom SDKs enabled seamless SCADA integration!"
– Security Automation Lead, MEA Oil Major (2024)
"Since deploying the AOA Passive Spectrum Drone Detector for 10km, our refinery's airspace security posture increased tenfold. False reports are virtually eliminated, and system operability in sandstorms and rain is unmatched. Excellent technical support and custom SDKs enabled seamless SCADA integration!"
– Security Automation Lead, MEA Oil Major (2024)
Major partners & deployments:
9. FAQ: Technical Terms & Professional Answers
Q1: What materials are used for the enclosure and why?
A1: The AOA Passive Spectrum Drone Detector for 10km uses 6061-T6 aerospace aluminum and UV-stabilized PC/ABS plastics, selected for exceptional corrosion resistance, durability, and minimal RF attenuation—critical for stable long-term outdoor operation.
Q2: What is “Angle of Arrival” (AOA) in drone detection context?
A2: AOA refers to pinpointing the direction of a signal source by analyzing phase/time differences between antenna elements. This enables geometric localization of drones without direct visual or active radar emissions.
Q3: How is the false alarm rate minimized?
A3: By using deep-learning trained RF signature libraries and dynamic noise floor calibration, spurious signals are filtered out. Final certification meets ISO/IEC 17025 lab data for <0.01 per hour false positives.
Q4: Which installation standards apply?
A4: The detector assemblies meet or exceed ANSI/IEC 60529 (IP66), ISO 9001, and are certified for ATEX, aviation, or petrochemical protocols as site required. Installations are performed according to local industrial safety codes.
Q5: What is the detector’s service lifecycle and warranty?
A5: Designed for over 10 years MTBF (Mean Time Between Failure) with 3-year standard warranty, extendable to 5 years. Full replacement or hot-swap coverage available on request.
Q6: Can this detector operate in extreme climates?
A6: Yes; verified for -35°C to +75°C ambient, 98% RH, with lightning/ESD protection. All connectors weather-sealed per EN 60529.
Q7: Is integration with SCADA/central command systems possible?
A7: Absolutely. Open RESTful API and Modbus/TCP adapters allow seamless integration with SCADA, VMS, and C2 platforms. Custom SDK provided for rapid deployment.
10. Delivery Cycle, Quality Assurance & Customer Support
- Typical Lead Time: 3-6 weeks, bulk or custom orders 6-9 weeks.
- Warranty: 3 years standard (5 years optional), with field engineering support worldwide.
- 24/7 technical support via phone, on-site, and remote remote diagnostics.
- Life-cycle calibration and spares service; full compliance with ISO 9001 after-sale standards.
- All support personnel are certified to IEC/EN 62368-1 and receive annual training in spectrum analysis and field installation safety.
Contact our engineering team for custom demo, technical whitepaper, or on-site deployment proposal via our official website: AOA Passive Spectrum Drone Detector for 10km.
11. References & Industry Authority
- Grand View Research. “Anti-Drone Market Size, Share & Trends Analysis Report.” https://www.grandviewresearch.com/industry-analysis/anti-drone-market
- IHS Markit, “Passive UAV RF Detection: Market and Technology Trends,” 2023. https://ihsmarkit.com/research-analysis/passive-uav-detection.html
- Security Industry Journal, “RF Spectrum Sensing vs. Radar for Modern Drone Defense,” Vol. 32(4), 2023. https://www.securityindustry.org/modern-rf-drone-defense
- European Standardization (EN/ISO/ANSI IP66, IEC 17025): Application of RF Passive Surveillance in Critical Infrastructure, 2024.
