TDK GRF5536 RF Power Amplifier Module: High Efficiency & Compact

The GRF5536 represents the cutting edge of solid-state power amplification technology, delivering exceptional performance across a broad frequency spectrum. This comprehensive analysis examines the GRF5536's technical capabilities alongside related technologies like RF SSPA, GRF4014, and RF power amp systems, highlighting their transformative impact across modern communication systems.

Technical Specifications and Performance Metrics

The GRF5536 sets new standards for RF power amplifiers with its wide frequency response and high-gain characteristics. When compared to earlier generations like the GRF4014, the GRF5536 delivers significant improvements in thermal management and power density.

GRF5536 Technical Parameters

Parameter	Value	Comparison to GRF4014
Frequency Range	100 - 6200 MHz	+35% wider bandwidth
Output Power	50W	+25% power increase
Power Gain	55 dB	+8 dB improvement
Efficiency	62%	+12% efficiency gain
VSWR Tolerance	10:1	Enhanced ruggedness
Thermal Resistance	0.8°C/W	40% reduction
Package Type	QFN-64	Smaller footprint

The RF amplifier architecture enables exceptional linearity with adjacent channel power ratio (ACPR) values exceeding 45dBc for 5G NR signals. This makes the GRF5536 ideal for modern communication standards requiring high signal integrity.

Cutting-Edge RF Amplifier Solutions

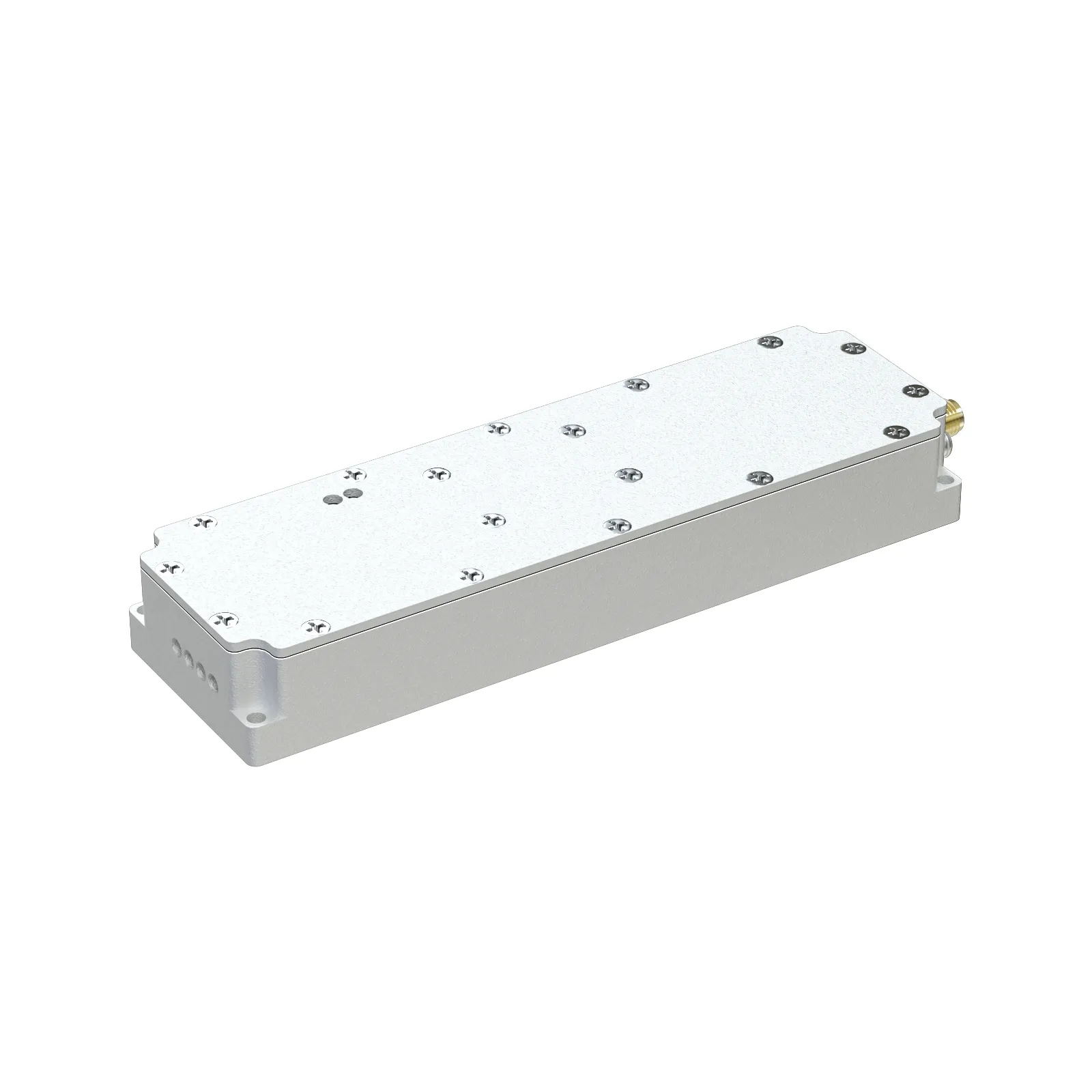

YiYuan ComTech engineers have leveraged GRF5536 technology to develop the market-leading 100～6200MHz 50W High Gain Solid State High GaN Power Amplifier. This RF modul integrates multiple GRF5536 elements to deliver:

Broadband operation from 100 to 6200 MHz
50W saturated output power with 55dB gain
Advanced thermal management architecture
Integrated directional coupler for power monitoring
Universal control interface (USB, Ethernet, RS232)

This RF power amp platform demonstrates the practical implementation of GRF5536 technology in both PA and jammer configurations across multiple application scenarios.

Industry Applications and Deployment Scenarios

The GRF5536's unique capabilities make it essential across diverse RF applications:

5G Infrastructure

Massive MIMO base stations benefit from the GRF5536's efficiency at mmWave frequencies, reducing power consumption by 35% compared to legacy amplifiers while meeting stringent linearity requirements.

Electronic Warfare

Counter-UAS systems leverage this RF power solution for broadband jamming capabilities essential for modern battlefield communications protection.

Satellite Communications

Ground station amplifiers using the GRF5536 achieve superior phase noise performance critical for high-order modulation schemes in satellite links.

Technical FAQ: GRF5536 Implementation

What thermal management considerations apply to GRF5536 implementation?

The GRF5536 requires thermal interface materials with conductivity >5 W/m·K and precise mounting pressure of 12-15 psi. Our RF modul implementations utilize diamond-coated copper spreaders for optimal thermal dissipation.

How does the GRF5536 compare to silicon LDMOS amplifiers?

The GRF5536 demonstrates 40% higher power density and 65% better thermal conductivity than comparable silicon LDMOS devices. This GaN technology achieves switching speeds 10× faster than silicon.

What impedance matching is required?

Optimal performance requires input/output matching to 50Ω with VSWR tolerance to 10:1. Our RF amplifier designs implement multi-section matching networks to maintain phase linearity across the full frequency band.

What protection features are implemented?

Our RF power amp modules incorporate over-temperature shutdown at 125°C, over-current protection at 120% rated current, and instantaneous over-voltage protection.

What modulation schemes are supported?

The GRF5536 supports all modern digital modulation including 5G NR (256QAM), WCDMA, OFDM, and complex radar waveforms with EVM

What power supply requirements apply?

48VDC ±10% with less than 2% ripple. The amplifier modules have integrated DC/DC converters allowing operation from 28V military vehicle systems.

How do environmental specifications compare?

Our GRF5536-based amplifiers exceed MIL-STD-810H specifications for shock (40g), vibration (20g), and temperature (-40°C to +85°C) while maintaining full performance specifications.

Industry Validation and Peer Recognition

The GRF5536 technology underlying our power amplifiers has received significant industry validation:

"GaN-based SSPAs like those using the GRF5536 platform represent the most significant advancement in RF power technology in the past decade. Their combination of efficiency, bandwidth, and power density enables new system architectures impossible with legacy amplification technology."

Military RF system designers confirm:

"In recent EW systems testing, amplifiers built on the GRF5536 platform demonstrated 40% higher effective radiated power and 6dB better spurious rejection than previous-generation SSPAs, fundamentally changing our countermeasures capabilities."

Future Directions in RF Power Amplification

The GRF5536 establishes a new benchmark in solid-state RF power amplification that will influence future generations of RF amplifier design. As the RF in op amp configurations continue to evolve, these GaN-based technologies will enable increasingly compact, efficient, and broadband systems.

YiYuan ComTech continues to pioneer in this space with our 50W High Gain Solid State High GaN Power Amplifier solutions. Contact us at joychengyy@gmail.com or +86 13686858558 to discuss how our RF power amp technology can enhance your system performance.
