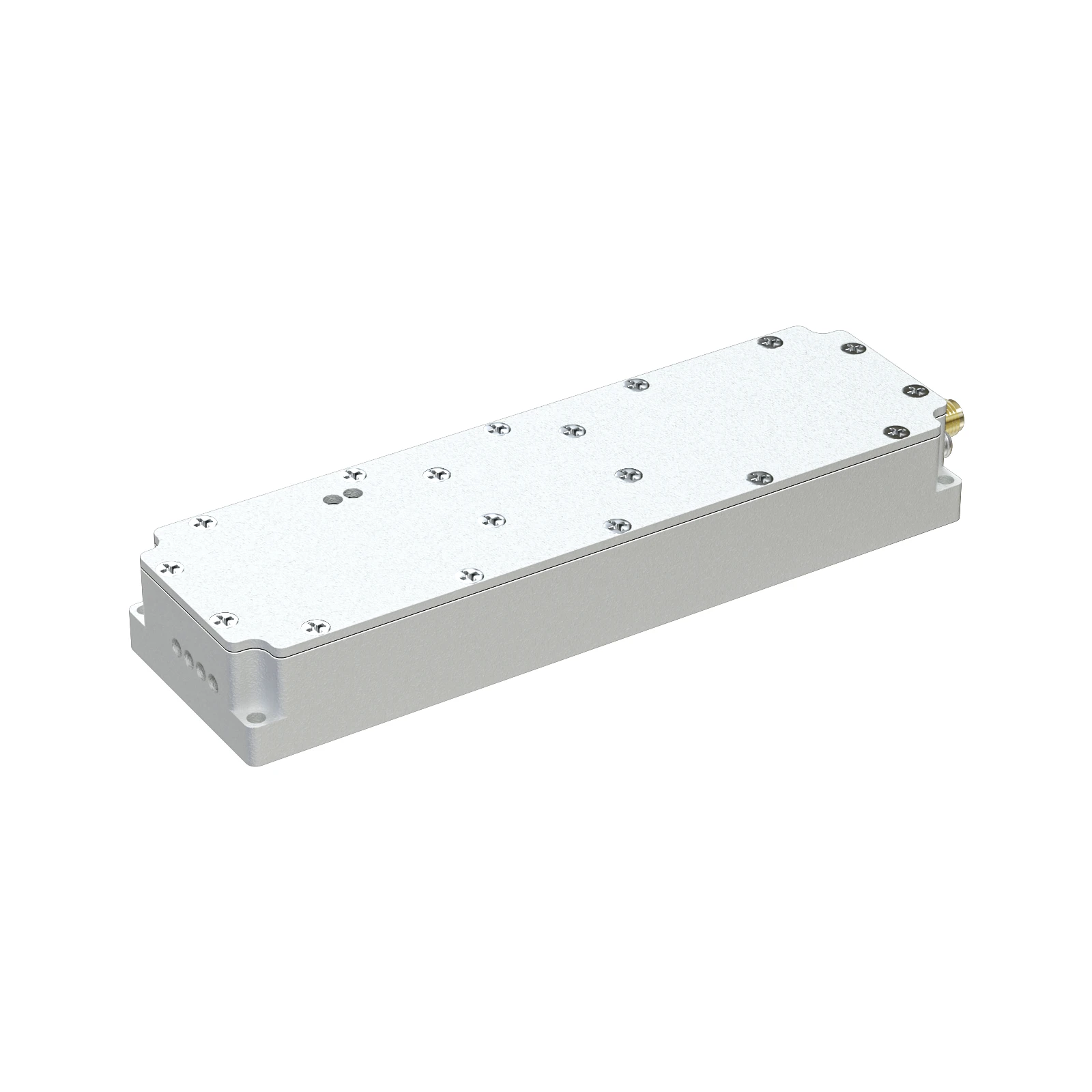

100～6200MHz 50w High Gain Solid State High Gan Power Amplifier

100～6200MHz 50w High Gain Solid State High Gan Power Amplifier
/
  • FUNCTIONAL FEATURES
  • PARAMETER INDICATORS
  • DOWNLOAD
  • APPLICATION SCENARIOS
Functional Features





  • the smallest volume 、 zoom in to 50W 、the smallest current to realize 50%-55% efficiency.
  • develop three types of source:LORA(Long Range Same Frequency Interference) source.
  • This amplifier module utilizes the latest high power RF GaN transistors.
  • This amplifier is suitable for jamming .





Parameter Indicators

PARAMETER

UNIT

MIN

TYP

MAX

SYMBOL

Operating Frequency range

MHz

100

-

6000

FO

Operating Bandwidth

MHz

-

150

-

BW

Peak Output Power @CW Signal

W

-

50

-

PSAT

Input Power

dBm

-

-

-

PIN

Maximum Input Power @Without Damage

dBm



-

-

PIN, MAX

Power Gain @Input Power 0dBm

dB

-

47±3

-

GP

Gain Flatness @Input Power 0dBm

dB

-

-

±1

∆GP

Efficiency

%

50

52

55

EFF

Harmonics 1 to N @Output Power 50W

dBc

12

13

15

HN

Spurious Level

dBc

60

-

-

Spur

Input VSWR

dB

-

-

-

VSWR

Output VSWR

dB

-

-

2:1

VSWR

Operating Voltage

V

24

28

32

VDC

Current Consumption @Output Power50W

A

-

2.8

-

IDC

Download Resources
Application Scenarios

Customized development of 100～6200MHz 50Watt amplifier,

unified size, support mass production

We Enable Powerful Frequency
Signal Amplifier with GaN Efficiency

Professionally support robust RF operations across the 100～6200 MHz narrowband band with compact, high-gain amplification.
VIEW MORE

100～6200Mhz 50w Power Amplifier FAQ

  • Q1: What is the operating frequency range of this amplifier?

    A: It operates from 100 MHz to 6200 MHz.

  • Q2: How much power does the amplifier output?

    A: It provides a maximum of 55 watts RF output.

  • Q3: What are common use cases for this amplifier?

    A: It’s widely used in military communication, RF jamming, signal testing, and emergency broadcast systems.

  • Q4:How to ensure product quality after receiving goods?

    A:Provide after-sales service. Unless the quality problem is caused by human factors, the warranty period is one year after receipt.
