Q1: What frequency range does this power amplifier support?

A: This module operates from 100 MHz to 400 MHz.

Q2: What is the output power of this amplifier?

A: It delivers up to 100 watts of RF output power.

Q3: What technology is used in the amplifier?

A: It uses Gallium Nitride (GaN) solid-state technology for high efficiency and thermal stability.

Q4: What are common applications for this module?

A: It’s ideal for military communications, ground-to-air systems, RF jamming, and test equipment.

Q5: Are protection features built into the module?

A: Yes, the module typically includes protections for over-temperature, input overdrive, and VSWR mismatch.

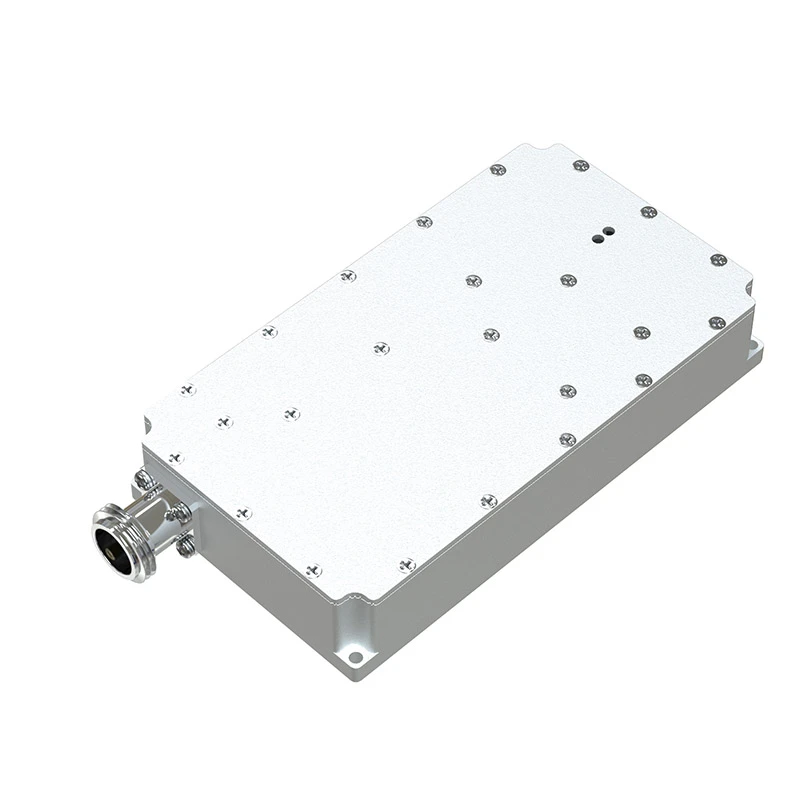

The Module Is A 100-400 Mhz 100w High Gain Solid State High Gan Power Amplifier

FUNCTIONAL FEATURES
PARAMETER INDICATORS
DOWNLOAD

Functional Features

This power amplifier covered 100-400M have the smallest volume and can zoom in to 100W as well as the smallest current to realize 50%-55% efficiency。
develop three types of source:LORA(Long Range Same Frequency Interference) source
This amplifier module utilizes the latest high power RF GaN transistors.
This amplifier is suitable for jamming .

Parameter Indicators

Operating Frequency	MHz	100	-	400	FO
Operating Bandwidth	MHz	-	300	-	BW
Peak Output Power @CW Signal	W	-	100	-	PSAT
Input Power	dBm	-	-	-	PIN
Maximum Input Power @Without Damage	dBm		-	-	PIN, MAX
Power Gain @Input Power 0dBm	dB	-	50±3	-	GP
Gain Flatness @Input Power 0dBm	dB	-	-	±1	▲GP
Efficiency	%	50	52	55	EFF
Harmonics 1 to N @Output Power100W	dBc	12	13	15	HN
Spurious Level	dBc	60	-	-	Spur
Input VSWR	dB	-	-	-	VSWR
Output VSWR	dB	-	-	2:1	VSWR
Operating Voltage	V	24	28	32	VDC
Current Consumption @Output Power100W	A	-	6	-	IDC

Download Resources

AMP250 100W GaN Amplifier datasheet

DOWNLOAD

We Empower Tactical Communications

With High-Gain RF Performance

Completely enhance signal coverage across low-frequency bands with robust 100W output and GaN efficiency.

100-400 Mhz 100w Power Amplifier FAQ

Q1: What frequency range does this power amplifier support?

A: This module operates from 100 MHz to 400 MHz.
Q2: What is the output power of this amplifier?

A: It delivers up to 100 watts of RF output power.
Q3: What technology is used in the amplifier?

A: It uses Gallium Nitride (GaN) solid-state technology for high efficiency and thermal stability.
Q4: What are common applications for this module?

A: It’s ideal for military communications, ground-to-air systems, RF jamming, and test equipment.
Q5: Are protection features built into the module?

A: Yes, the module typically includes protections for over-temperature, input overdrive, and VSWR mismatch.
