Q1: What is the frequency range of this power amplifier?

A: This module covers a frequency range from 700 MHz to 1050 MHz.

Q2: What is the maximum output power?

A: The amplifier provides up to 50 watts of RF output power.

Q3: What semiconductor technology is used in this amplifier?

A: It uses high-efficiency GaN (Gallium Nitride) solid-state technology.

Q4: What applications are suitable for this amplifier?

A: It’s ideal for wireless infrastructure, tactical communication, signal jamming, and broadcast systems.

Q5: Does the module support protection features?

A: Yes, it includes built-in protections such as over-temperature, over-voltage, and load mismatch (VSWR).

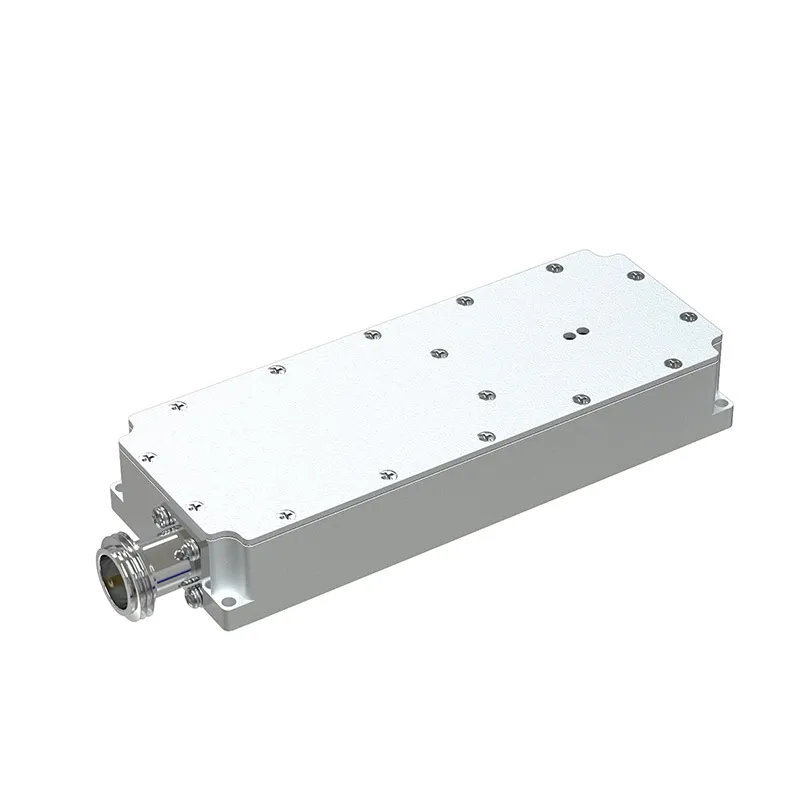

The Module Is A 700-1050 Mhz 50w High Gain Solid State High Gan Power Amplifier

FUNCTIONAL FEATURES
PARAMETER INDICATORS
DOWNLOAD

Functional Features

This power amplifier covered 700-1050M have the smallest volume and can zoom in to 50W as well as the smallest current to realize 50%-55% efficiency。
develop three types of source:LORA(Long Range Same Frequency Interference) source
This amplifier module utilizes the latest high power RF GaN transistors.
This amplifier is suitable for jamming .

Parameter Indicators

PARAMETER	UNIT	MIN	TYP	MAX	SYMBOL
Operating Frequency	MHz	700	-	1050	F_O
Operating Bandwidth	MHz	-	350	-	BW
Peak Output Power @CW Signal	W	-	50	-	PSAT
Input Power	dBm	-	-	-	PIN
Maximum Input Power @Without Damage	dBm		-	-	PIN, MAX
Power Gain @Input Power 0dBm	dB	-	47±2	-	G_P
Gain Flatness @Input Power 0dBm	dB	-	-	±1	▲G_P
Efficiency	%	50	52	55	EFF
Harmonics 1 to N @Output Power50W	dBc	12	13	15	H_N
Spurious Level	dBc	60	-	-	Spur
Input VSWR	dB	-	-	-	VSWR
Output VSWR	dB	-	-	2:1	VSWR
Operating Voltage	V	24	28	32	VDC
Current Consumption @Output Power50W	A	-	3.5	-	IDC

Download Resources

DOWNLOAD

We Amplify Next-Gen Communication Systems

With Compact Power SolutionsDelivery

Professionally deliver solid-state efficiency and high gain across the 700–1050 MHz spectrum.

700-1050 Mhz 50w Power Amplifier FAQ

Q1: What is the frequency range of this power amplifier?

A: This module covers a frequency range from 700 MHz to 1050 MHz.
Q2: What is the maximum output power?

A: The amplifier provides up to 50 watts of RF output power.
Q3: What semiconductor technology is used in this amplifier?

A: It uses high-efficiency GaN (Gallium Nitride) solid-state technology.
Q4: What applications are suitable for this amplifier?

A: It’s ideal for wireless infrastructure, tactical communication, signal jamming, and broadcast systems.
Q5: Does the module support protection features?

A: Yes, it includes built-in protections such as over-temperature, over-voltage, and load mismatch (VSWR).
