Q1: What is the frequency operating range of this amplifier module?

A: The module operates in the 400 MHz to 700 MHz band.

Q2: How much RF output power does it provide?

A: It delivers up to 50 watts of output power.

Q3: What type of technology is used in the amplifier?

A: The amplifier is built using GaN (Gallium Nitride) solid-state technology for high efficiency and durability.

Q4: What are its typical application scenarios?

A: It's suitable for tactical radios, electronic countermeasures (ECM), broadcasting, and lab test setups.

Q5: Are protection mechanisms included?

A: Yes, it includes protection against overheating, over-voltage, and high VSWR.

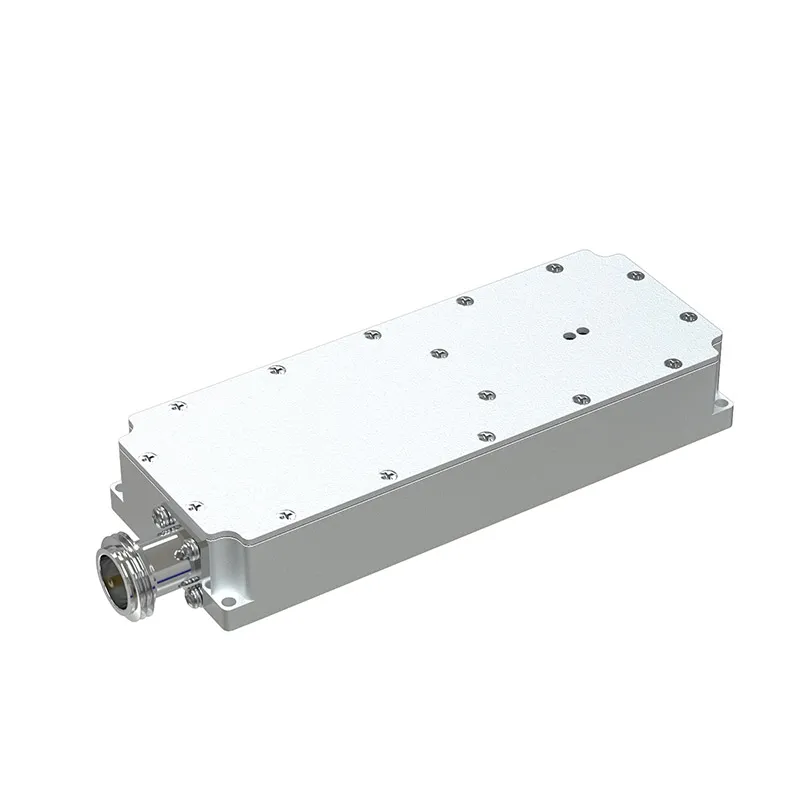

The Module Is A 400-700 Mhz 50w High Gain Solid State High Gan Power Amplifier

FUNCTIONAL FEATURES
PARAMETER INDICATORS
DOWNLOAD

Functional Features

This power amplifier covered 400-700M have the smallest volume and can zoom in to 50W as well as the smallest current to realize 50%-55% efficiency。
develop three types of source:LORA(Long Range Same Frequency Interference) source
This amplifier module utilizes the latest high power RF GaN transistors.
This amplifier is suitable for jamming .

Parameter Indicators

PARAMETER	UNIT	MIN	TYP	MAX	SYMBOL
Operating Frequency	MHz	400	-	700	F_O
Operating Bandwidth	MHz	-	300	-	BW
Peak Output Power @CW Signal	W	-	50	-	PSAT
Input Power	dBm	-	-	-	PIN
Maximum Input Power @Without Damage	dBm		-	-	PIN, MAX
Power Gain @Input Power 0dBm	dB	-	47±2	-	G_P
Gain Flatness @Input Power 0dBm	dB	-	-	±1	▲G_P
Efficiency	%	50	52	55	EFF
Harmonics 1 to N @Output Power50W	dBc	12	13	15	H_N
Spurious Level	dBc	60	-	-	Spur
Input VSWR	dB	-	-	-	VSWR
Output VSWR	dB	-	-	2:1	VSWR
Operating Voltage	V	24	28	32	VDC
Current Consumption @Output Power50W	A	-	3.5	-	IDC

Download Resources

Amp550 50w Gan Amplifier Datasheet

DOWNLOAD

We Deliver Efficient RF Power for

Critical Communication Systems

Professionally enhance signal strength and coverage with 50W high-gain output across the 400–700 MHz range.

400-700 Mhz 50w Power Amplifier FAQ

Q1: What is the frequency operating range of this amplifier module?

A: The module operates in the 400 MHz to 700 MHz band.
Q2: How much RF output power does it provide?

A: It delivers up to 50 watts of output power.
Q3: What type of technology is used in the amplifier?

A: The amplifier is built using GaN (Gallium Nitride) solid-state technology for high efficiency and durability.
Q4: What are its typical application scenarios?

A: It's suitable for tactical radios, electronic countermeasures (ECM), broadcasting, and lab test setups.
Q5: Are protection mechanisms included?

A: Yes, it includes protection against overheating, over-voltage, and high VSWR.
