Q1: What is the frequency range of this power amplifier module?

A: The module operates in the 700–1050 MHz frequency band.

Q2: What type of transistor technology is used in this amplifier?

A: This amplifier uses high-efficiency GaN (Gallium Nitride) solid-state technology.

Q3: What is the maximum output power of this module?

A: The module delivers up to 100W output power.

Q4: What applications is this amplifier suitable for?

A: It's ideal for use in military communication, broadcasting, RF testing, and other wideband systems.

Q5: Does the module have any built-in protection features?

A: Yes, it typically includes protection for over-temperature, over-voltage, and output mismatch.

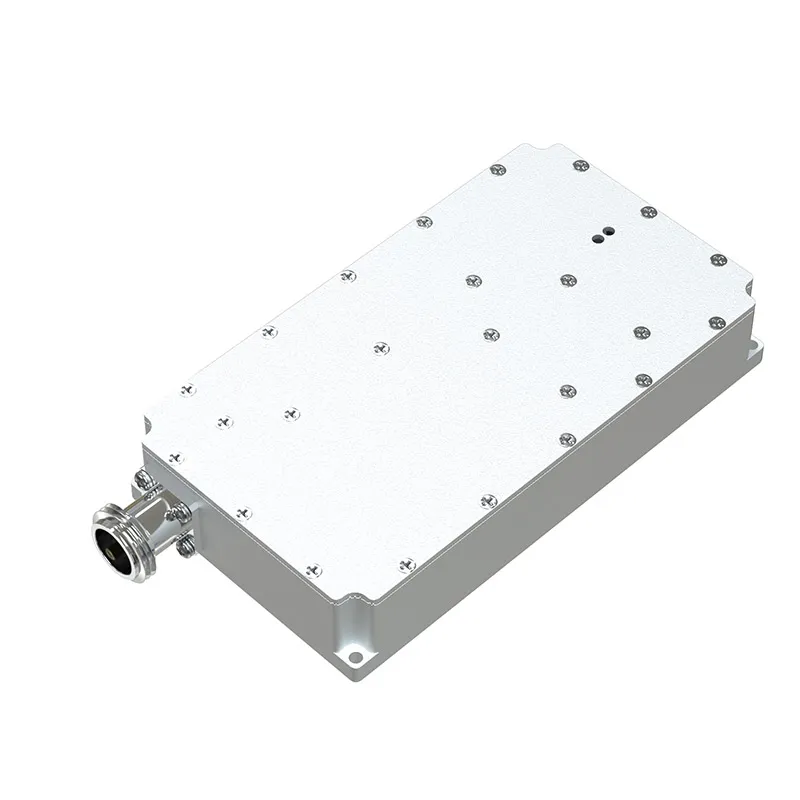

The Module Is A 700-1050 Mhz 100w High Gain Solid State High Gan Power Amplifier

FUNCTIONAL FEATURES
PARAMETER INDICATORS
DOWNLOAD

Functional Features

This power amplifier covered 700-1050M have the smallest volume and can zoom in to 100W as well as the smallest current to realize 50%-55% efficiency。
develop three types of source:LORA(Long Range Same Frequency Interference) source
This amplifier module utilizes the latest high power RF GaN transistors.
This amplifier is suitable for jamming .

Parameter Indicators

PARAMETER	UNIT	MIN	TYP	MAX	SYMBO L
Operating Frequency	MHz	700	-	1050	FO
Operating Bandwidth	MHz	-	350	-	BW
Peak Output Power @CW Signal	W	-	100	-	PSAT
Input Power	dBm	-	-	-	PIN
Maximum Input Power @Without Damage	dBm		-	-	PIN, MAX
Power Gain @Input Power 0dBm	dB	-	50±3	-	GP
Gain Flatness @Input Power 0dBm	dB	-	-	±1	▲GP
Efficiency	%	50	52	55	EFF
Harmonics 1 to N @Output Power100W	dBc	12	13	15	HN
Spurious Level	dBc	60	-	-	Spur
Input VSWR	dB	-	-	-	VSWR
Output VSWR	dB	-	-	2:1	VSWR
Operating Voltage	V	24	28	32	VDC
Current Consumption @Output Power100W	A	-	7	-	IDC

Download Resources

AMP875-100W-GaN-Amplifier-datasheet

DOWNLOAD

We Deliver High-Power RFAmplification for
Mission-Critical Applications

Professionally empower wideband communication systems with high-gain, solid-state GaN technology.

700-1050 Mhz 100w Power Amplifier FAQ

Q1: What is the frequency range of this power amplifier module?

A: The module operates in the 700–1050 MHz frequency band.
Q2: What type of transistor technology is used in this amplifier?

A: This amplifier uses high-efficiency GaN (Gallium Nitride) solid-state technology.
Q3: What is the maximum output power of this module?

A: The module delivers up to 100W output power.
Q4: What applications is this amplifier suitable for?

A: It's ideal for use in military communication, broadcasting, RF testing, and other wideband systems.
Q5: Does the module have any built-in protection features?

A: Yes, it typically includes protection for over-temperature, over-voltage, and output mismatch.
