Introduction

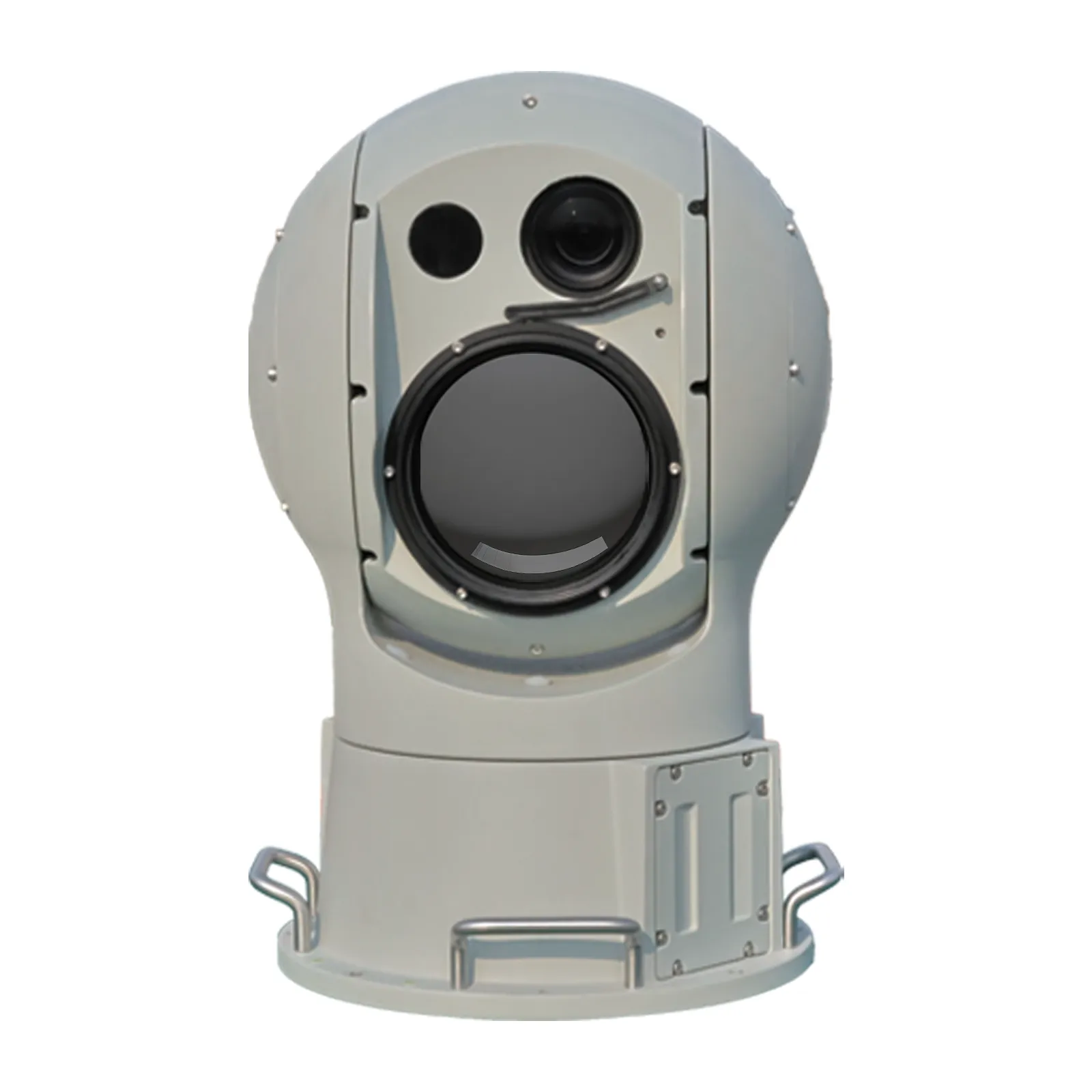

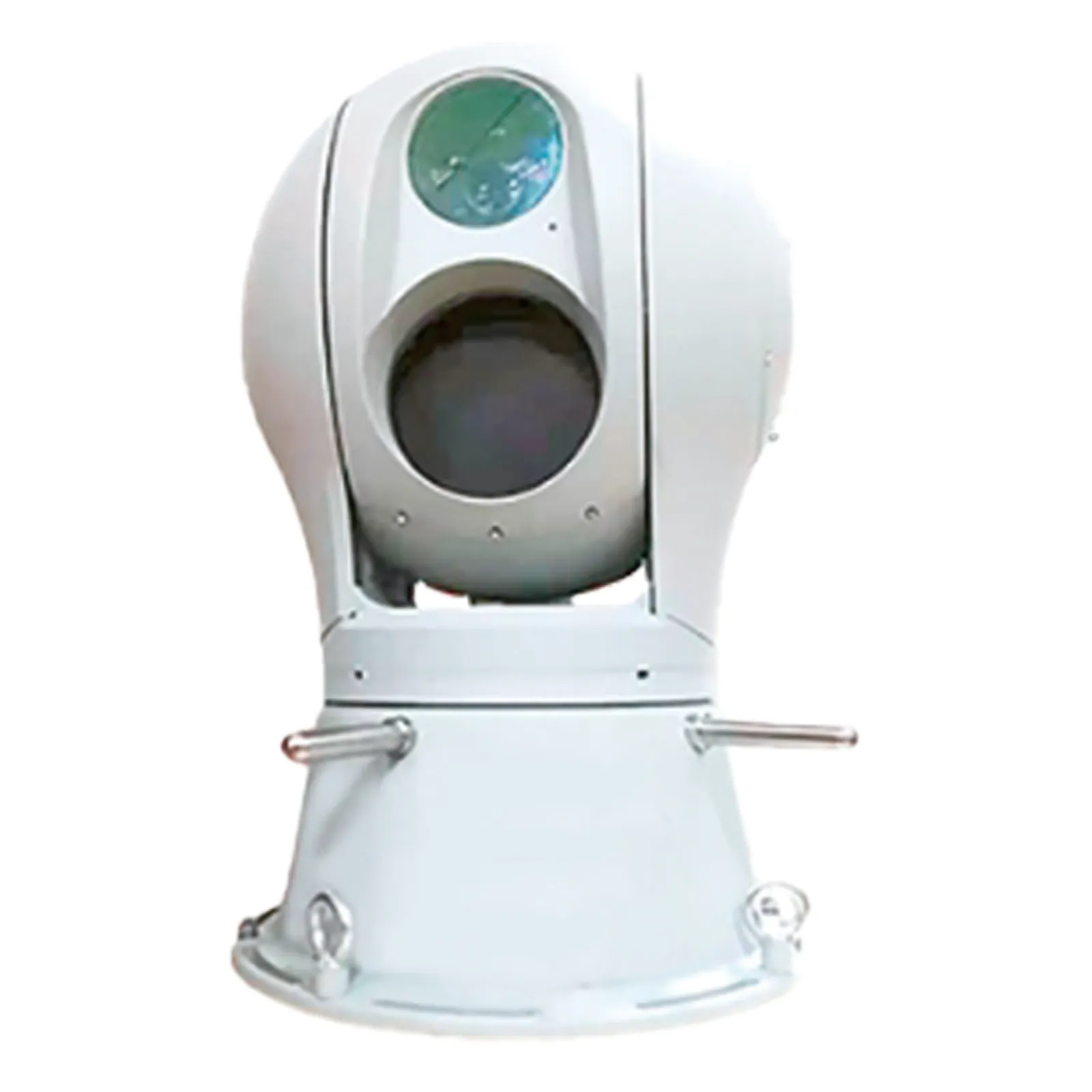

The Multispectral Target Recognition and Tracking Servo Turntable by YiYuan ComTech Co., Ltd. represents a cutting-edge solution in advanced surveillance and tracking technology. Combining high-resolution visible light imaging, infrared thermal imaging, and precision servo control, this system is designed to meet the demands of modern security, military, and industrial applications. This article delves into the product's features, technical specifications, application scenarios, and the company's commitment to innovation.

Product Features

The Multispectral Target Recognition and Tracking Servo Turntable is engineered to provide unparalleled performance in both day and night conditions. Its key features include:

• High-Resolution Visible Light Imaging: The system captures images at 1920x1080 @25fps with a 50X optical continuous zoom, allowing for detailed observation of distant objects. It supports color, black and white, and optical defogging modes to enhance visibility in challenging weather conditions.
• Infrared Thermal Imaging: Utilizing an uncooled Vanadium Oxide Detector, the system offers 640x512 resolution with 30–150mm focal length. It provides thermal imaging in hot black, hot white, and pseudo-color modes, ensuring effective detection in low-light or no-light environments.
• Precision Servo Turntable: The servo direct drive with PID feedback enables precise horizontal and vertical movement, with a 0°–360° horizontal range and -45°–90° vertical range. The system's ±0.01° pre-set stop accuracy ensures reliable positioning.
• Intelligent Tracking and Recognition: The system supports multi-point optical positioning guidance and can identify over 80 target types, including drones, humans, vehicles, and boats. It also features full-screen motion target search and guided tracking capabilities.

Technical Specifications

The Multispectral Target Recognition and Tracking Servo Turntable is built to meet rigorous technical standards. Below is a detailed specification table:

Daytime and Nighttime Performance

The system's performance is exceptional in both daylight and nighttime conditions:

Daytime Performance

• Civil Aircraft: Detection Range ≥15KM, Tracking Range ≥10KM, Identification Range ≥7KM
• Drone (0.35m×0.35m): Detection Range ≥3.5KM, Tracking Range ≥3KM, Recognition Range ≥2.5KM

Nighttime Performance

• Civil Aircraft: Detection Range ≥10KM, Tracking Range ≥6KM, Identification Range ≥4KM
• Drone (0.35m×0.35m): Detection Range ≥1.8KM, Tracking Range ≥1.5KM, Recognition Range ≥1.2KM

These metrics are achieved under standard conditions: 20°C ambient temperature, ≥10KM visibility, and ≤40% humidity.

Application Scenarios

The Multispectral Target Recognition and Tracking Servo Turntable is versatile and suitable for a wide range of applications:

• Security and Surveillance: Ideal for monitoring critical infrastructure, such as airports, power plants, and border control, due to its long-range detection and high-resolution imaging.
• Military and Defense: The system's ability to track and identify targets in both day and night conditions makes it a valuable asset for reconnaissance and threat detection.
• Industrial Monitoring: Used in manufacturing and logistics to monitor large facilities, ensuring safety and efficiency.
• Environmental Monitoring: The thermal imaging capabilities are useful for detecting heat signatures in environmental studies and disaster response scenarios.

Company Background: YiYuan ComTech Co., Ltd.

YiYuan ComTech Co., Ltd., based in Shenzhen, China, is a leading innovator in communication technology and surveillance systems. With a focus on research and development, the company has established itself as a trusted provider of advanced solutions for both domestic and international markets. Their commitment to quality and technological advancement ensures that their products meet the highest industry standards.

YiYuan ComTech's expertise in multispectral imaging and servo control systems has positioned them at the forefront of the surveillance technology sector. Their products are designed to address the evolving needs of modern security and monitoring applications.

Compliance with Industry Standards

The Multispectral Target Recognition and Tracking Servo Turntable adheres to rigorous industry standards, ensuring reliability and performance. Key compliance areas include:

• IP66 Protection: The system is designed to withstand harsh environmental conditions, including dust and water ingress.
• Network Protocols: Supports IPv4, TCP/IP, UDP for seamless integration into existing network infrastructures.
• Power Supply: Operates on AC220V to DC48V with a power consumption of ≤120W, making it energy-efficient.

These standards are aligned with NIST guidelines for precision and reliability in measurement technologies. For further details on NIST standards, refer to the NIST website.

Conclusion

The Multispectral Target Recognition and Tracking Servo Turntable by YiYuan ComTech Co., Ltd. is a robust solution for advanced surveillance and tracking needs. With its combination of high-resolution imaging, thermal capabilities, and precision control, it offers unmatched performance in diverse environments. Whether for security, military, or industrial applications, this system sets a new benchmark in multispectral technology.
