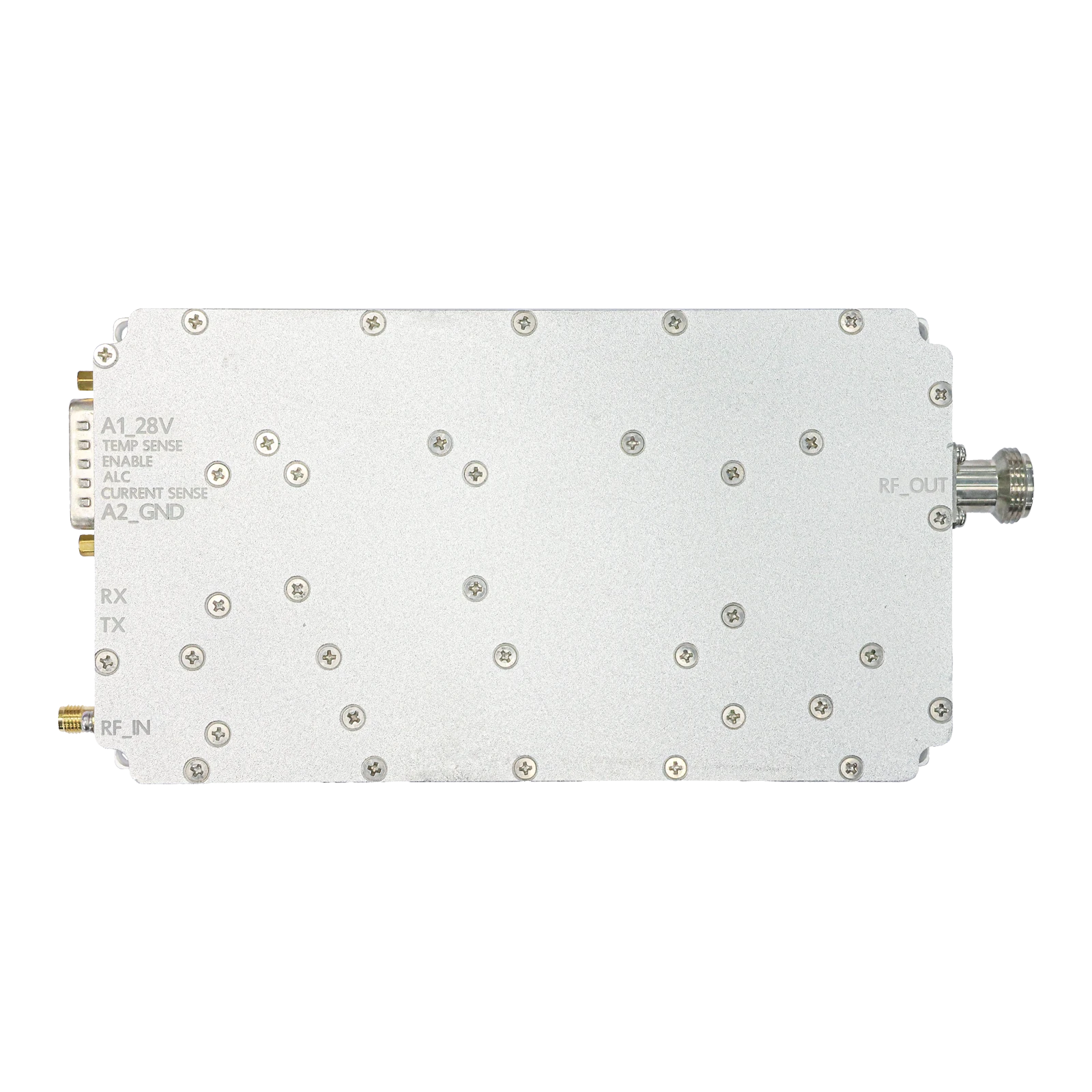

100～6200MHz 100W High Gain Solid State High Gan Power Amplifier

FUNCTIONAL FEATURES
PARAMETER INDICATORS
DOWNLOAD
APPLICATION SCENARIOS

Functional Features

the smallest volume 、 zoom in to 100W 、the smallest current to realize 50%-55% efficiency.
develop three types of source:LORA(Long Range Same Frequency Interference) source.
This amplifier module utilizes the latest high power RF GaN transistors.
This amplifier is suitable for jamming .

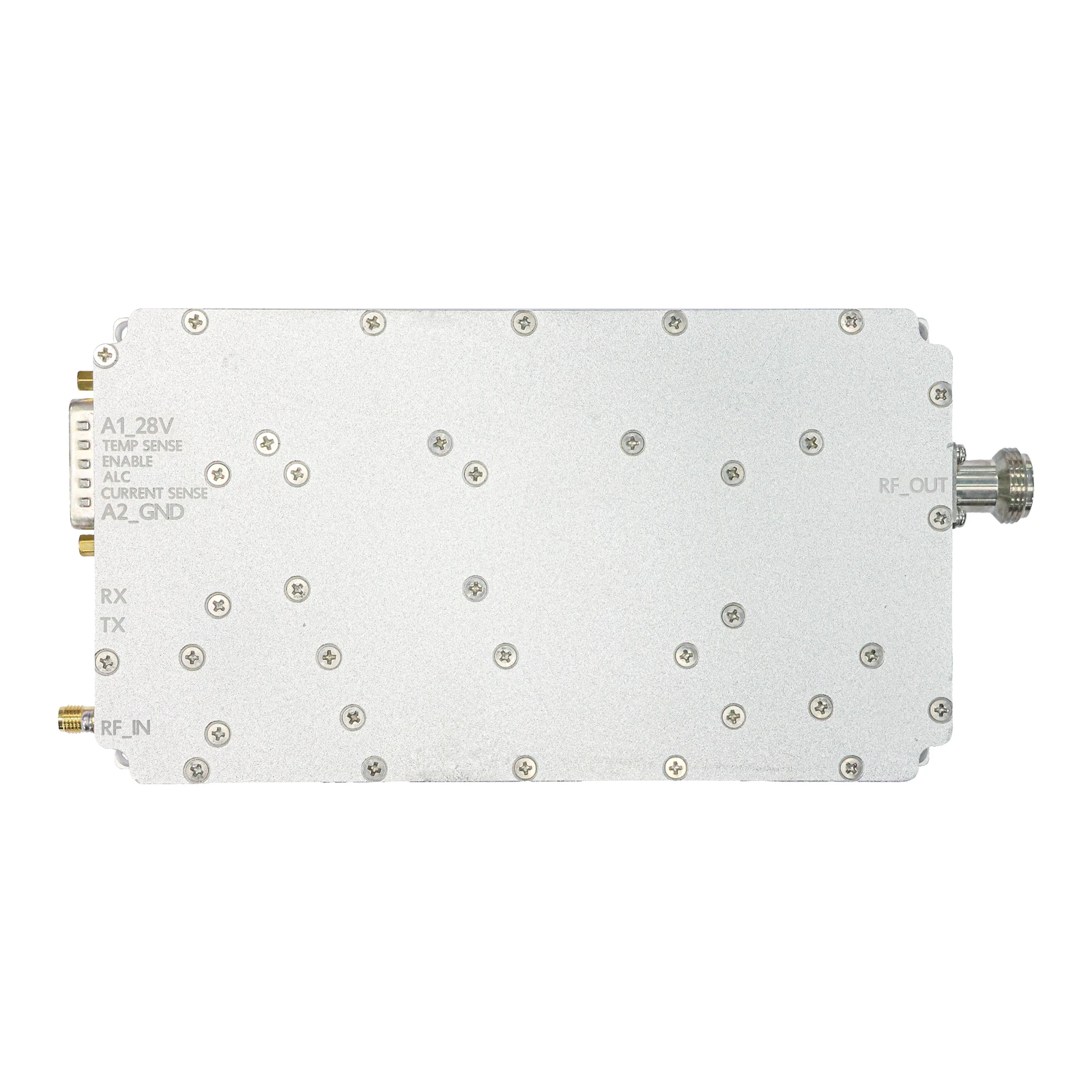

100～6200MHz 100W High Gain Solid State High Gan Power Amplifier

Parameter Indicators

Electrical Specifications @ V_DC=24-32V（Wide voltage input）, T_C=50°C, 50W System

PARAMETER	UNIT	MIN	TYP	MAX	SYMBOL
Operating Frequency	MHz	100	-	6000	F_O
Operating Bandwidth	MHz	-	300	-	BW
Peak Output Power @CW Signal	W	-	100	-	PSAT
Input Power	dBm	-	-	-	PIN
Maximum Input Power @Without Damage	dBm		-	-	PIN, MAX
Power Gain @Input Power 0dBm	dB	-	50±3	-	G_P
Gain Flatness @Input Power 0dBm	dB	-	-	±1	∆G_P
Efficiency	%	50	52	55	EFF
Harmonics 1 to N @Output Power100W	dBc	12	13	15	H_N
Spurious Level	dBc	60	-	-	Spur
Input VSWR	dB	-	-	-	VSWR
Output VSWR	dB	-	-	2:1	VSWR
Operating Voltage	V	24	28	32	VDC
Current Consumption @Output Power100W	A	-	7.0	-	IDC

DC INTERFACE CONNECTOR – [Hybrid D-Sub 6-Pin, Male]

Pin#	Description	Specifications
1	A1_28V	+28VDC
2	TEMP	Analog voltage relative to Module’s Temperature@10mV/°C
3	Enable	3.3-5V
4	ALC	Automatic Level Control
2	CURR	Analog voltage relative to IDD@100mV per Ampere
6	A2_GND	Ground

Download Resources

100～6200MHz 100W

DOWNLOAD

Application Scenarios

Customized development of 100～6200MHz 100Watt amplifier,

unified size, support mass production

We Enable Powerful Frequency

Signal Amplifier with GaN Efficiency

Professionally support robust RF operations across the 100～6200 MHz narrowband band with compact, high-gain amplification.

100～6200Mhz 100w Power Amplifier FAQ

Q1: What is the operating frequency range of this amplifier?

A: It operates from 100 MHz to 6200 MHz.
Q2: How much power does the amplifier output?

A: It provides a maximum of 110 watts RF output.
Q3: What are common use cases for this amplifier?

A: It’s widely used in military communication, RF jamming, signal testing, and emergency broadcast systems.
Q4:How to ensure product quality after receiving goods?

A:Provide after-sales service. Unless the quality problem is caused by human factors, the warranty period is one year after receipt.
