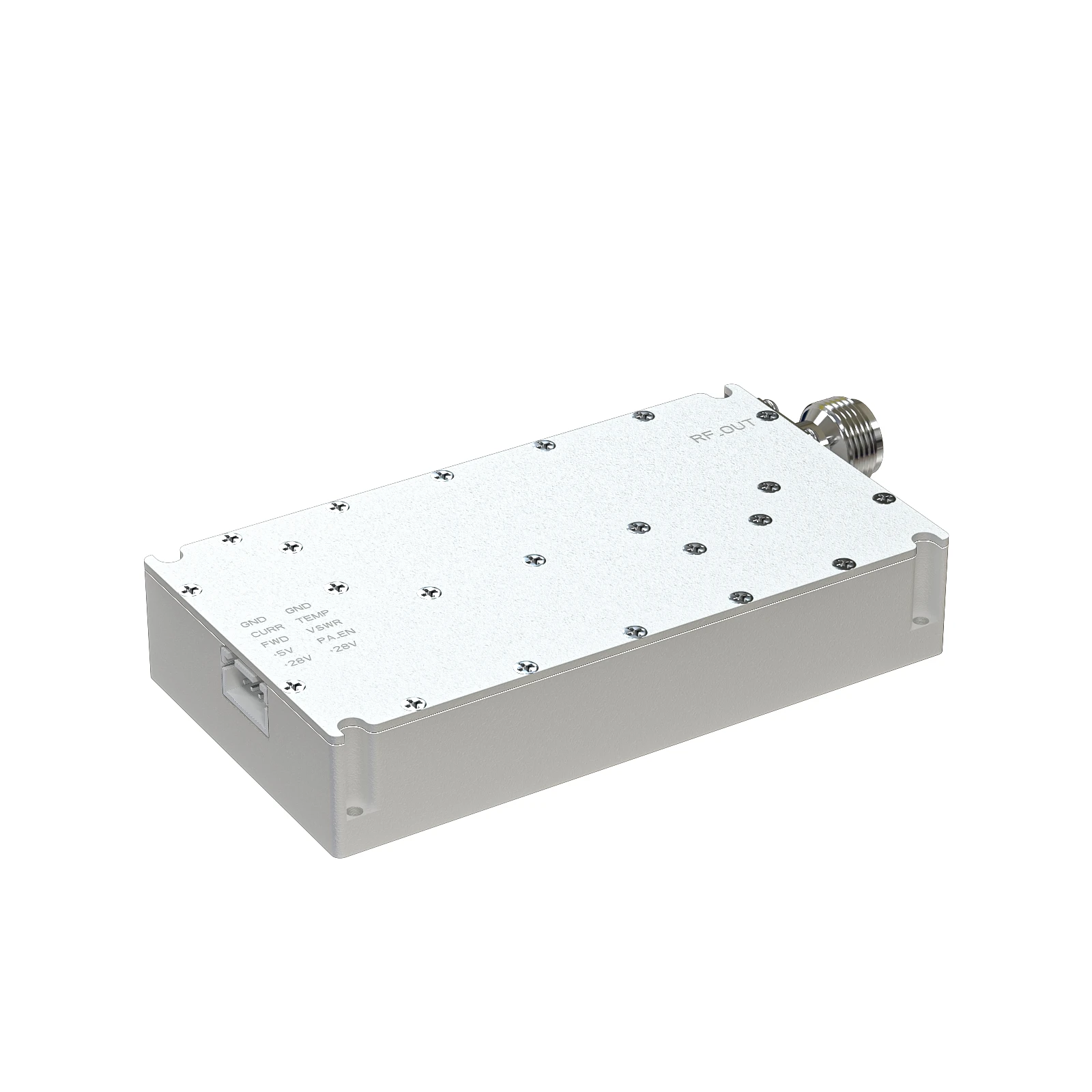

100～6200MHz 50w Function with VSWR、Detection、TEMP

FUNCTIONAL FEATURES
PARAMETER INDICATORS
DOWNLOAD
APPLICATION SCENARIOS

Functional Features

VSWR、FWD、TEMP、CURR.
develop three types of source:LORA(Long Range Same Frequency Interference) source.
This amplifier module utilizes the latest high power RF GaN transistors.
This amplifier is suitable for jamming .

Parameter Indicators

Electrical Specifications @ V_DC=24-32V（Wide voltage input）, T_C=50°C, 50W System

PARAMETER	UNIT	MIN	TYP	MAX	SYMBOL
Operating Frequency range	MHz	100	-	6000	F_O
Operating Bandwidth	MHz	-	150	-	BW
Peak Output Power @CW Signal	W	-	50	-	PSAT
Input Power	dBm	-	-	-	PIN
Maximum Input Power @Without Damage	dBm		-	-	PIN, MAX
Power Gain @Input Power 0dBm	dB	-	47±3	-	G_P
Gain Flatness @Input Power 0dBm	dB	-	-	±1	∆G_P
Efficiency	%	50	52	55	EFF
Harmonics 1 to N @Output Power 50W	dBc	12	13	15	H_N
Spurious Level	dBc	60	-	-	Spur
Input VSWR	dB	-	-	-	VSWR
Output VSWR	dB	-	-	2:1	VSWR
Operating Voltage	V	24	28	32	VDC
Current Consumption @Output Power50W	A	-	3.5	-	IDC

DC INTERFACE CONNECTOR – [Hybrid D-Sub 10-Pin, Male]

Pin#	Description	Specifications
1	GND	Ground
2	TEMP	Analog voltage relative to Module’s Temperature@10mV/°C
3	VSWR	Voltage standing wave alarm
4	PA_EN	Amplifier Enable:TTL Logic High(3.3V/ON、0V/OFF)
5	+28	+28VDC
6	GND	Ground
7	CURR	Analog voltage relative to IDD@100mV per Ampere
8	FWD	Forward power detection@50mV/1dB
9	+5V	External power supply:5V
10	+28V	+28VDC

Download Resources

DOWNLOAD

Application Scenarios

Customized development of 100～6200MHz 50Watt amplifier with muti-fuction,

unified size, support mass production

We Enable Powerful Frequency

Signal Amplifier with GaN Efficiency

Professionally support robust RF operations across the 100～6200 MHz narrowband band with compact, high-gain amplification.

100～6200Mhz 50w Power Amplifier FAQ

Q1: What is the operating frequency range of this amplifier?

A: It operates from 100 MHz to 400 MHz.
Q2: How much power does the amplifier output?

A: It provides a maximum of 50 watts RF output.
Q3: What kind of technology is used in the amplifier design?

A: The module uses high-performance Gallium Nitride (GaN) solid-state technology.
Q4: What are common use cases for this amplifier?

A: It’s widely used in military communication, RF jamming, signal testing, and emergency broadcast systems.
Q5: Are there built-in protection features?

A: Yes, the module includes protections for over-temperature, over-voltage, and high VSWR conditions.
